Physics 10 Class Notes CHAPTER No 16

 Physics 10 Class Notes CHAPTER No 16 INTRODUCTORY ELECTRONICS

Table of Contents

  •  Physics 10 Class Notes CHAPTER No 16 INTRODUCTORY ELECTRONICS
  • Major Concepts
  • comprehensive Question
  • Physics 10 Class Notes CHAPTER No 16 Images Full Notes
Physics Class X Notes comprehensive Question, Exercise, Conceptual Question & Numerical Problems pdf full notes.


Major Concepts

  • Thermionic emission
  • Properties of electrons
  • Electron gun
  • Cathode-ray oscilloscope
  • Analogue and digital electronics
  • Logic gates

comprehensive Question

Q1: Define electronics? Discuss the main branches of electronics? Electronics:
“The branch of applied physics which we deal with the study of electron-emitting devices, their use and control are called electronics. ‘OR”
“The branch of physics which deals with the development of electron-emitting devices, their Utilization and controlling electrons flow in electrical circuits designed for various purposes is called electronics.” Branch of Electronics:
Electronics can be divided into two main branches.
  • Analogue Electronics. ‘
  • Digital Electronics.

Analogue Quantities:

The branch of electronics which consisting of such circuits which processes analogue quantities is called analogue electronics.
Analogue Quantities:
The quantities whose values vary continuously (or) remain constant are called analogue quantities e.g the temperature of the air in the atmosphere is changing continuously during day and night. The public address sound system is another example of an analogue electronic system.
In this sound system, the microphone converts the sound of the speaker into electrical signals. The sound signal of the speaker is a variable (or) an analogue signal. The electrical signals sent out by the microphone are also analogue signals. The output of the microphone is fed into an amplifier, which is also an analogue instrument. The amplifier amplifies its input without changing its shape and operates a budding speaker. In this way is loud sound is produced out of the speaker.
Digital Electronics:
“The branch of electronics which deals with such circuits which provide data in the form of maximum and minimum voltage signals is known as digital electronics”.
In this type of data, the change is not continuous and one part of the data is quite different from the other part of the data. The best example is that of the computer. Modern telephone system, radar system, medical. Equipment’s and my household appliances make use of digital electronics.

ADC and DAC
The things signals that we perceive by our five senses in our daily life are usually analogue quantities, which cannot be processed by digital circuits. To resolve this difficulty, a circuit has to be designed which can convert the analogue signals which can convert the analogue signals into digital signals. This is known as analogue to digital converter i.e. ADC.

When we analogue signals in the form of digital signals then we process it with the digital circuit, the output of which is also in digital form. The digital output is converted into analogue form by a circuit known is digital to analogue converter (DAC). As the output of DAC is an analogue signal, we can easily sense it. The electronic system used at present consists of both analogue and digital type circuits.
Q2: What is meant by thermionic Emission?
Ans: Thermionic Emission:-
“The phenomena of emission of electrons from heated metals is called thermionic emission.” “OR”
“The emission of electrons from certain metals due to hat is known as thermionic emission.”
Explanation:-
Thermionic emission can be produced by electrically heating a fine tungsten filament. This can be achieved by passing a current through the filament as shown in the figure.

Physics 10 Class Notes CHAPTER No 16 Thermionic Emission by filament
Physics 10 Class Notes CHAPTER No 16
Thermionic Emission by filament
Thermionic emission has -provided physicists with an important means of producing a continuous supply of electrons. In metals, the valance electrons are free to move like the atoms and molecules of gas which are free to move in the container. These electrons can move freely Through the metal and perform the random motion. Such electrons are known as free electrons. Now if we supply heat to the metal, then the valance electrons absorb the supplied heat energy and they become able to overcome the attractive forces of atomic nuclei. In this way, the electrons can escape from the surface of the metal. Such emission of electrons due to heat is known as thermionic emission.

Q3: Describe the construction and working of electron gun?
 Electron Gun:
A device which is used to study the properties of the electron beam is called an electron gun.
Explnation.-
Electron gun consists of a glass tube in which the tungsten filament (cathode) and cylindrical anode are sealed at low pressure. The electrons are produced by thermionic emission from tungsten filament heated by a 6V supply. The electrons will be accelerated to high speed and they shoot straight through the hole of the anode in a fine beam of electrons. This electron beam is also called cathode rays as they are produced from the cathode (or) negative electrode.

Electron Gun
The effect of the electric field and magnetic field upon the beam of these free electrons is as follows.
a) Effect of electric field on Beam of electrons:-
When an electron beam passes between two plates, the electron beam deflect toward the positive plate as shown in the figure.

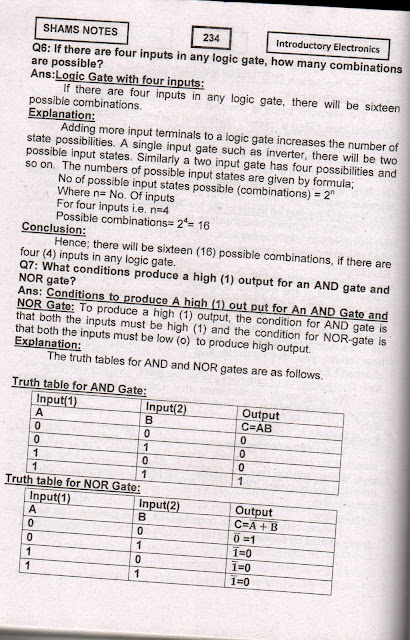

Physics 10 Class Notes CHAPTER No 16 Images Full Notes


Physics 10 Class Notes CHAPTER No 16
Physics 10 Class Notes CHAPTER No 16
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes
Physics 10 Class Notes CHAPTER No 16
Physics 10
Physics 10 Class Notes CHAPTER No 16

  • Physics 10 Class Notes CHAPTER No 17
  • Physics 10 Class Notes CHAPTER No 15
  • Physics 10 Class Notes CHAPTER No 14
  • Physics 10 Class Notes CHAPTER NO 13
30.37532169.345116
SendShareTweetPinShareShareShareShare

RelatedPosts

Physics Class 10 Notes Chapters 10 to chapters 18
Physics 10

Physics Class 10 Notes Chapters 10 to chapters 18

2k

We are searching to solve your problem by providing you...

Read more
Physics numericals for class 10 chapter 18 pdf

Physics numericals for class 10 chapter 18 pdf

1.3k
Physics class 10 chapter no 17 short questions Pdf

Physics class 10 chapter no 17 short questions Pdf

521
Physics 10 class Chapter 16 Introductory Electronics

Physics 10 class Chapter 16 Introductory Electronics Conceptual Questions

743
Load More
Please login to join discussion

Subscribe to Blog via Email

Enter your email address to subscribe to this blog and receive notifications of new posts by email.

Join 756 other subscribers

No Result
View All Result
  • Download file
  • 20 Best Stories in English for class 9th
  • Bsek Class 11 Urdu Notes PDF Download
  • Download All Classes Notes in Pdf Class 9, Class 10, Class 11, & Class 12
  • KPK Text Book Board New 2021 PDF Download
  • Sindh textbook board Jamshoro books pdf download 2021
  • Grade 9 KPK Textbooks Board Pdf Download All Subjects
  • Sindh Karachi 2nd year model paper
  • Sindh textbook board Karachi Class 10 Book Pdf
  • Class 11 Islamiat notes Urdu Medium for Sindh Board
  • Home
  • Privacy Policy
  • Subscription
  • Contact us
  • Feedback
  • Disclaimer
  • Terms & Conditions
  • Cookies Policy
  • ABOUT US
  • Newsletter

© 2021 Perfect24u | All Rights Reserved

No Result
View All Result
  • Home
  • KPK NOTES
    • KPK TextBook Board
      • Grade 1
      • Grade 2
      • Grade 3
      • Grade 4
      • Grade 5
      • Grade 6
      • Grade 7
      • Grade 8
      • Grade 9
      • Grade 10 KPTBB BOOK
      • Grade 12 books for KPK
      • Grade 11 BOOK KPK Board
    • Class 7
      • Urdu
    • Class 9
      • Mathematics
      • English Class 9 Notes for KPK
      • 9th Urdu Notes
      • Biology 9th
      • Islamiat 9
      • Computer Science 9th
      • Pak Studies 9
      • Physics 9th
      • Chemistry 9th
    • Class 10
      • English 10th Notes
      • Biology 10 Class
      • CHEMISTRY 10 NOTES
      • class 10 Maths
      • Pak Study 10th
      • Physics 10
      • Urdu 10
    • Class 11 KPK Notes
      • 11 class biology notes KPK
      • 1st Year Mathematics Notes
      • chemistry class 11 notes
      • English FA Fsc Part 1 KPK
      • Islamiat Class 11 for kpk
      • Physics class 11 notes
    • 2nd Years
      • 2nd Year Chemistry Notes
      • Mathematics-XII
      • 2nd year computer science notes
      • 2nd Year Economics Notes
      • 2nd year English notes
      • 2nd year Pakistan Study Notes
      • 2nd Year Physics Notes
      • Bio Fsc Part 2
    • BISE Swat
      • Result
      • Model Papers
      • Chemistry Class 10 Notes
      • Class 11 Computer Science
      • Economics Notes Class 11
      • Statistics Class 11
      • Class 12 Statistics Notes
    • Syllabus
    • Mardan Board
      • 9th Notes
  • AIOU
    • B.ED books
    • B.S AIOU Books
    • Bachelor AIOU Books
    • CT AIOU Books
    • FA
  • BISE Lahore
    • Class X
      • English Class 10th Notes
    • Class IX
      • English Class 9th Notes
    • Class XI
      • English Class 11th Notes
    • Class XII
      • English Class 12th Notes
  • Sindh Board
    • Sindh Textbook Jamshoro
    • Class IX
      • Pak Studies Sindh 9
      • Computer Science 9 Sindh
      • Mathematic Sindh Class 9
      • Chemistry Notes
      • Biology 9
      • Physics
      • Sindh Board English 9th Notes
      • Islamiat Class 9 Sindh
    • Class X
      • Sindh Class 10 Physics
      • Sindh Class 10th English Notes
      • Islamiat Class 10 Sindh
    • Class XI
      • PHYSICS Sindh Board G11
      • Islamiat
      • English notes class 11 Sindh board
    • Class XII
      • English Notes Sindh board 12th
  • CBSE
    • CBSE Class 9
    • CBSE Class 10
    • CBSE Class 11
    • CBSE Class 12
  • Rawalpindi Board
    • Class 9th
      • Chemistry G9
      • Mathematics G9
      • Pak Studies G9
      • G9 Urdu
      • English 9th Notes
      • Biology G9
      • Physics G9
    • Class 10th
      • English 10th Notes
    • Class 11th
      • English 11th Notes
  • FBISE
    • 9 Class
      • Computer Science
      • Biology Notes
      • 9th FBISE Maths
      • Fbise 9 Notes Eng
    • 10 Class
      • English FBISE Notes
    • 11 Class
      • FBISE English 11th
    • 12 Class
      • Class 12 English Notes Fbise
    • FBISE Past Papers
      • 10 Class
      • 9th Past Papers
  • Articles
    • Seo
    • Baidu
    • Keyword
    • Essay
    • A-Z Universities in Pakistan
    • Admissions
    • All Country Independence Day
    • Countries Info
    • FILMORA
    • Education Qoutes
    • Happy Teacher Day
    • Insurance
    • Islamic
    • Muslim Boys names
    • Nelson’s Mandela
    • PHILONTHROPIC PRACTICES
    • Speeches
    • Story
  • DIT
  • DAE
  • MCQs
  • Technology
    • Marketing Think with Google
    • Science
  • Punjab board
    • Class 11 Notes PTBB
      • Computer Science PTBB Class 11
      • English 11 Notes Punjab
      • Chemsitry PTBB 11th
      • Math Notes PTBB 11th
      • Physics PTBB 11th
      • Urdu PTBB 11th
      • Biology 11th PTBB
    • Class 9
    • Punjab Class 10th
    • Punjab Board Class 10 Chemistry

© 2021 Perfect24u | All Rights Reserved
